Relay controlled loads

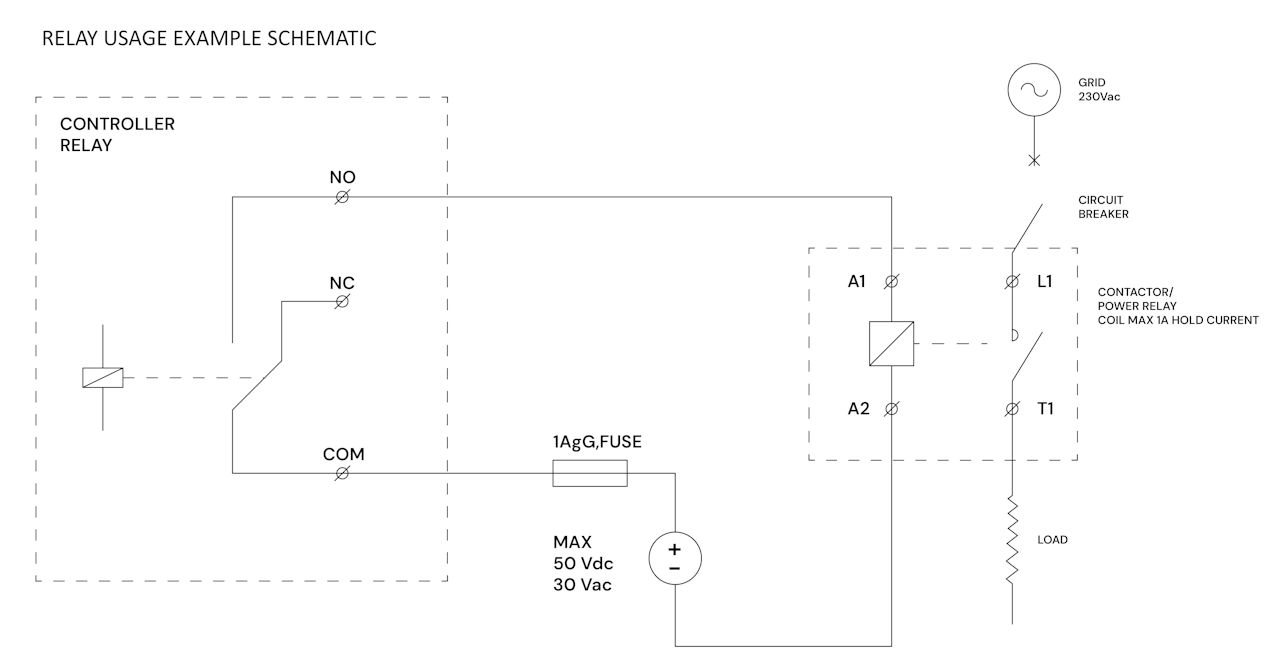

You can use the controller's internal relay (if present) or an external relay expansion module to control switched loads. Use the combination of the COM and NC terminals for loads you want on by default, and the COM and NO terminals for loads you want off by default. In the image to the left or above, you can find an example diagram of how the relay can be used.

Examples of switched loads are: boilers & switched sockets.
